XD5-40t Barcode Label Printer
XD5-40t Barcode Label Printer

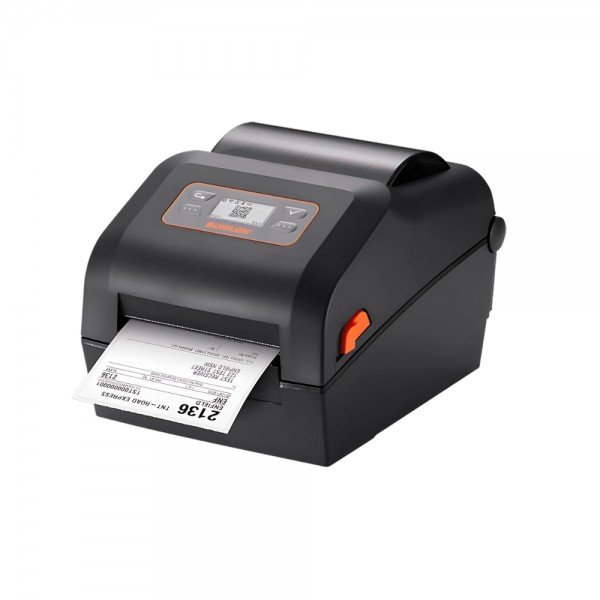

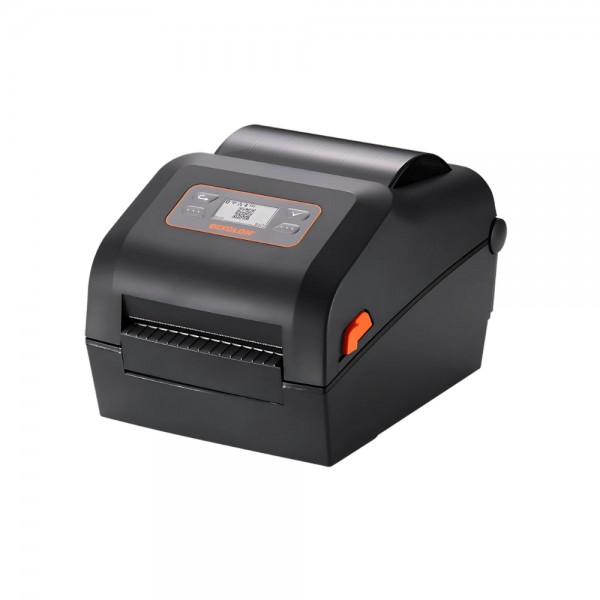

Bixolon XD5-40t Barcode Label Printer 4'' USB

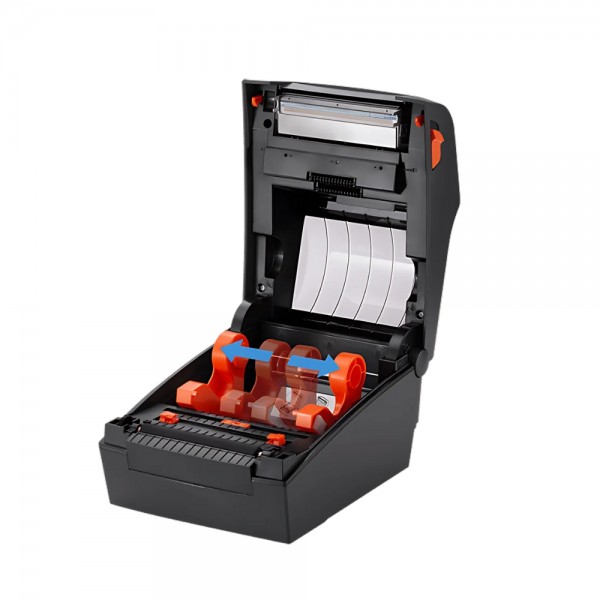

Thermal Transfer Desktop Label Printer, featuring a rugged, compact, clamshell design and all-inclusive software features ideal for barcode and labelling applications for the Transport and Logistics, Manufacturing, Healthcare and Retail industries. Offers accelerated data processing and print speeds of up to 6 ips (152mm/sec), while boasting enhanced memory space of up to 256MB SDRAM and 256 MB Flash. Toolless field-installable Peeler, Auto Cutter and external paper supply, with optional LCD display, adjustable paper guide and media roll diameter space of up to 127mm, suitability for both 1/2-inch and 1-inch core ribbons (74 m and 300m ribbon length) and enhanced ribbon handling with the new ribbon left-right balance adjustment. Alongside by Smart Media Detection™ for the automatic media detection of Gap, Black Mark, Continuous or Notch media formats, all back with a 3-year warranty as standard. Comes with dual USB2.0 and USB Host as standard, plus optional, Dual-WLAN, Dual-Bluetooth, Serial or Ethernet. With the USB host port allowing the duplication of existing printer settings and data to another estate printers through its Twin Function™. The barcode and label is compatible with market leading programming languages including SLCS™, BPL-Z™ and BPL-E™. The printer is accompanied with comprehensive firmware and software options, including BIXOLON’s XPM™ web-based printer profile management and Simple Network Management Protocol (MIB file), alongside compatibility with label design software including BIXOLON’s Label Artist-II™ and BarTender®.
Barcode Printers | |
Printing technology | Thermal Transfer or Direct Thermal |
Printing Speed | 152 mm/sec |
Printing Width | 108 mm |
Printing Resolution | 203 dpi |
Memory | 64 MB SDRAM, 128 MB Flash |
Interfaces printers | Standard: USB + USB Host. Optional: ① USB + USB Host + Serial + Ethernet ② USB + USB Host + Serial + Ethernet + WLAN ③ USB + USB Host + Serial + Ethernet + Bluetooth® |
Additional features | Media Width 15 -118mm. Transmissive(Fixed), Reflective(Adjustable), Head Open, Ribbon-End sensor. Emulation SLCS, BPL-Z (ZPL ll®), BPL-E (EPL), BPL-D (DPL, Optional). Operating Temperature : 5-40℃. Storage: -20-60℃. Dimensions 210 x 284 x 188 mm. Weight 2.48kg |
File | Size | Download |
---|---|---|
bixolon-xd5-40t-label-printer-datasheet.pdf | 120.94KB | Download |
