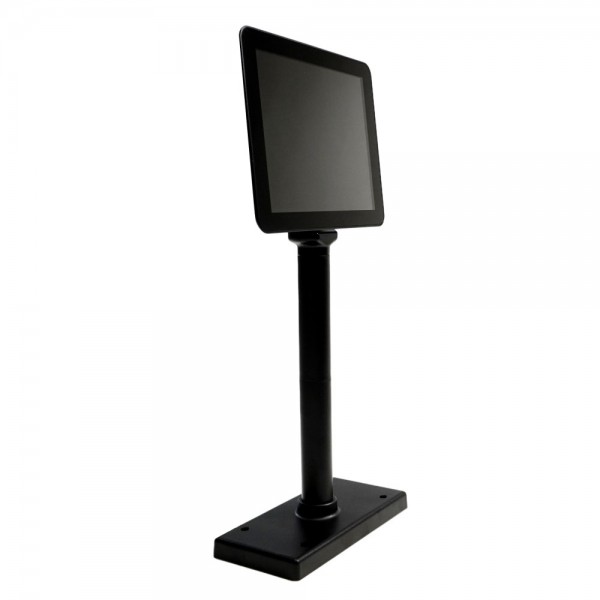

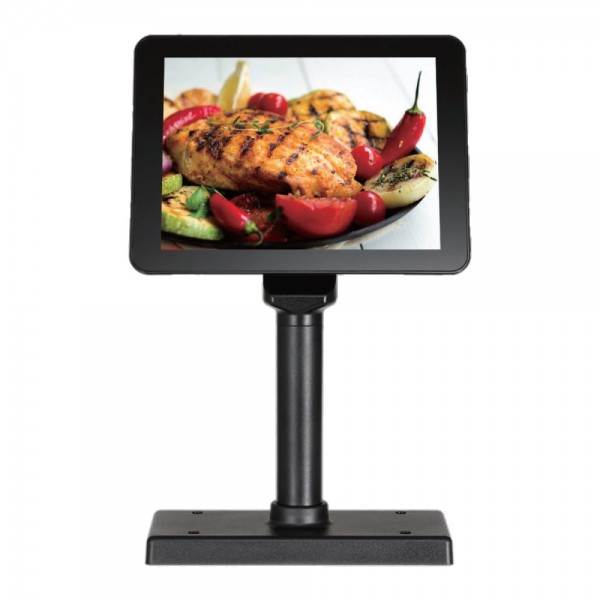

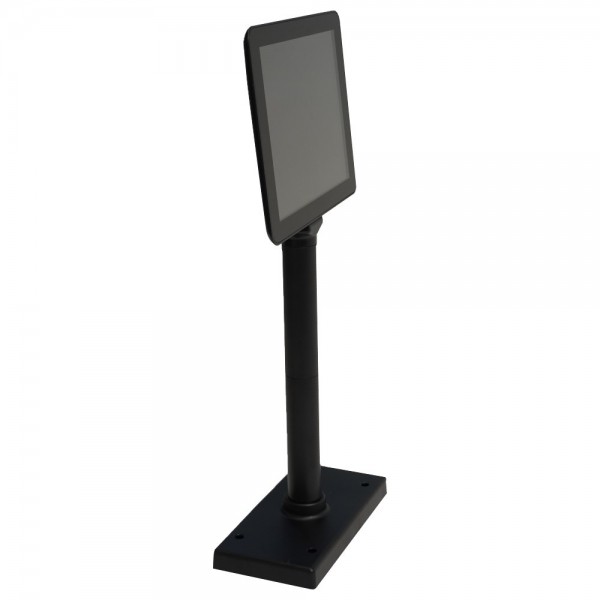

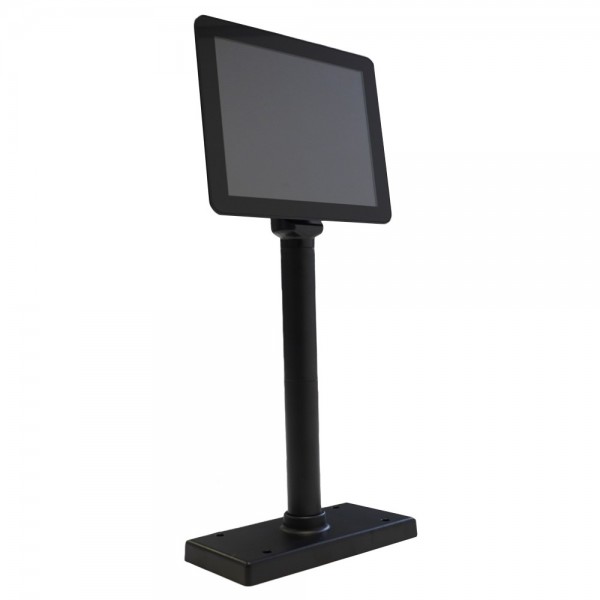

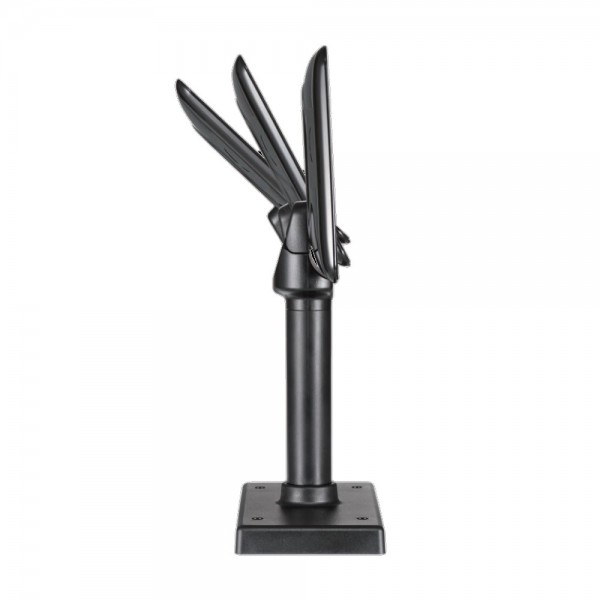

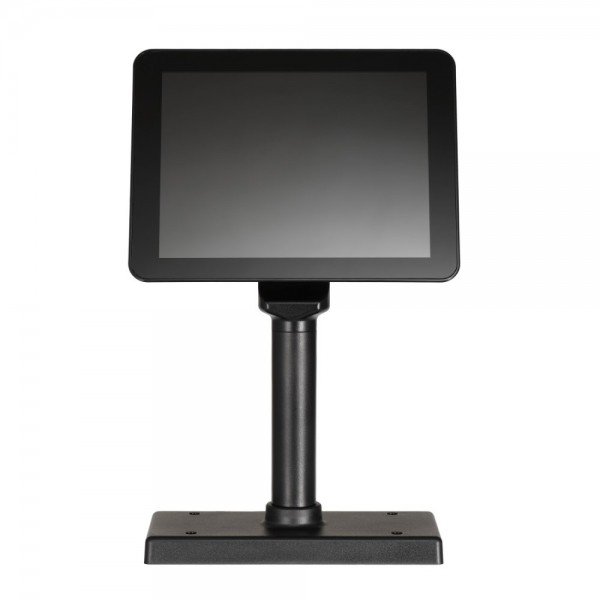

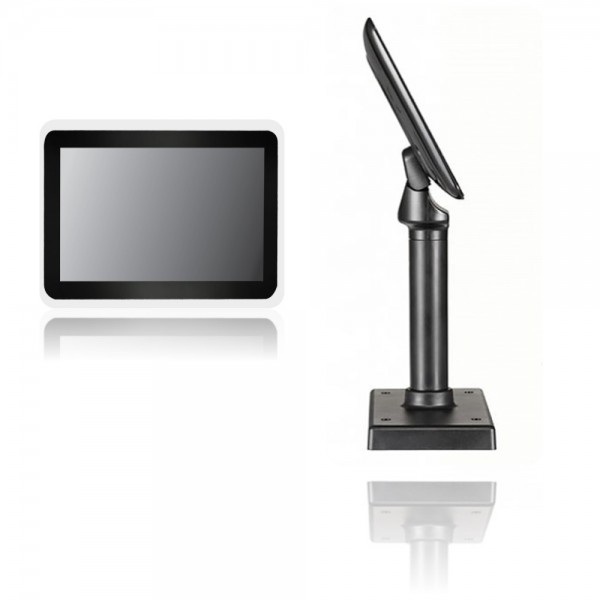

9.7" LCD Monitor/POS Customer Display USB POLE TYPE
Very convenient screen in all stores and corporate units. True Flat 9.7" LCD Monitor with sunlight Readable IPS Panel and USB interface that provides a single-cable solution that combines power, video, and touch optional.
| Monitors | |
| Monitor specifications | 9.7" |
| Monitor Technology | 4:3 TFT LCD (Digital-Panel) (IPS) LED backlight |
| Brightness | 300 cd/m2 ~ 350 cd/m2 |
| Resolution monitor | 1024x768 |
| Display area | 196.6(H) x 147.4(V) mm |
| Interface | USB |
| Response Time ms | 20ms |
| Vieweing Angle | 178° /178° |
| Power monitor | 5V USB X 2 or 5V USB + DC 5V Adapter. Power Consumption 5V / 1100mA. 12V / 450mA |
| Temperature/ Humidity | Temperature Range: Operating: 0℃-40℃ |
| Dimensions /weight | 241.9(L) x 186.4(W) x 18.4(D) mm (Monitor Only) |
| Additional features - Monitor | EMC / Safety Standards FCC, CE |
| File | Size | Download |
|---|---|---|
| monitor-lcd-usb-ics-97-inches-datasheet (1).pdf | 974.07KB | Download |
