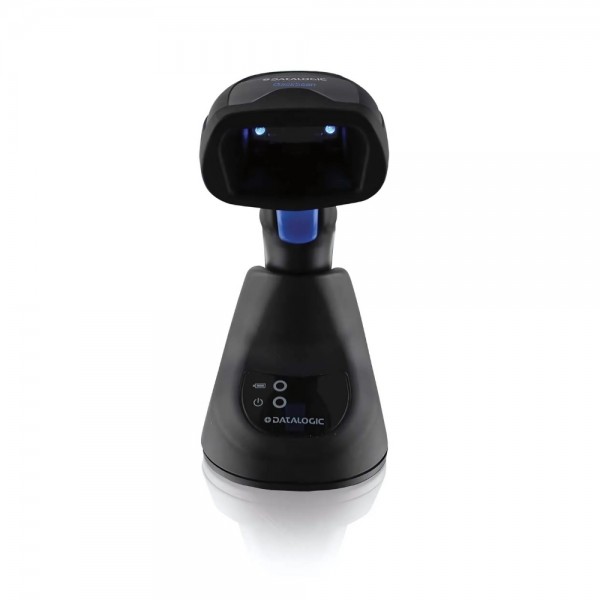

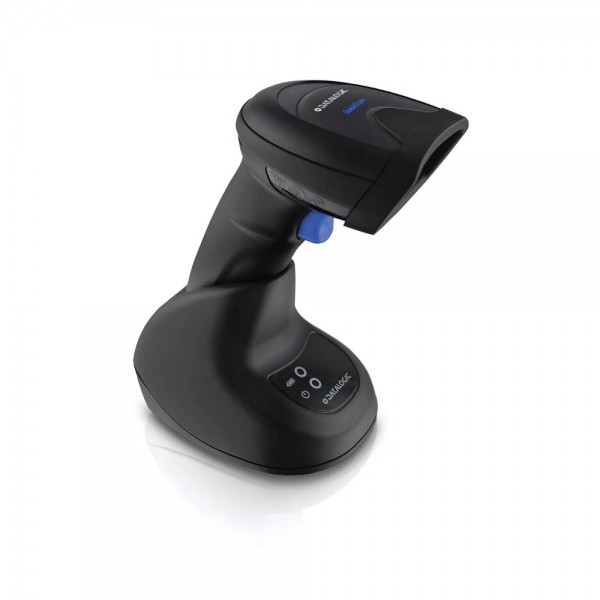

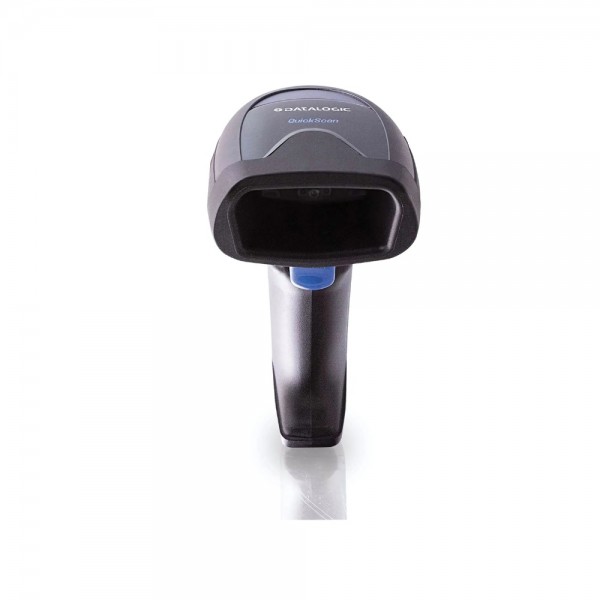

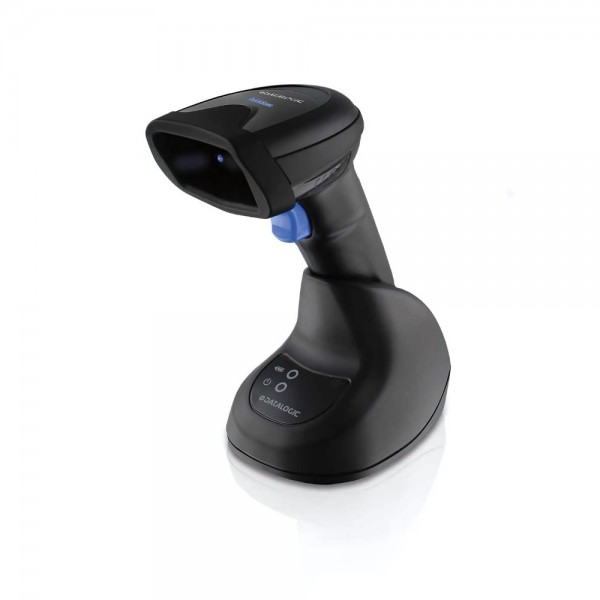

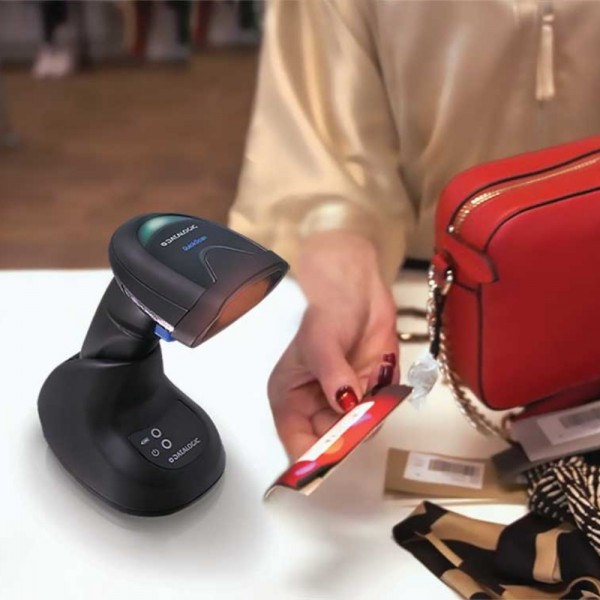

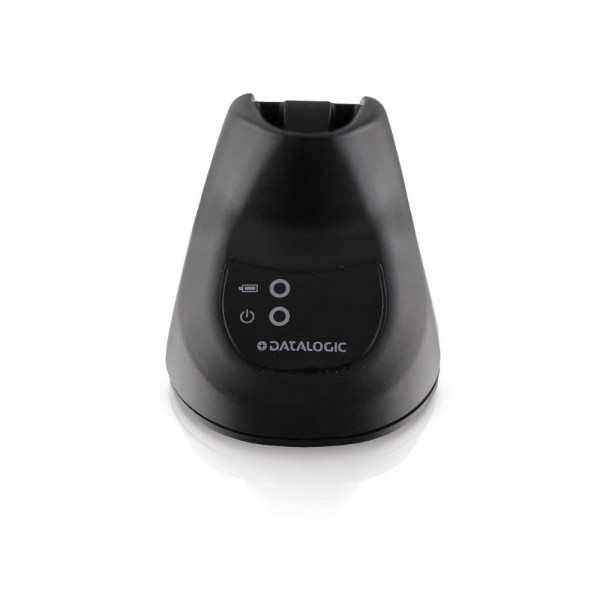

Datalogic QuickScan QM2500 Bluetooth and Wi-Fi barcode Scanner
QuickScan QM2500 STAR radio models ensure interference-free communication with low sensitivity to obstacles, avoiding delays and increasing productivity, particularly in busy environments with Bluetooth and Wi-Fi. This will pay back your investment in just three months! Additionally, in times of shortage of components (and Bluetooth chips in particular), the availability of an alternative radio communication represents to our customers a protection of their investment and an appropriate risk diversification. Captures 1D, 2D, postal and Digimarc barcodes, as well as DOT codes. With 3,250 mAh battery and easily changed without the requirement of tools. Scans up to 115,000 per battery charge. Interfaces: USB-C, RS-232 and keyboard wedge
| Scanners | |
| Reading mode | 2D |
| Scanning range/ Βάθος πεδίου | Code 39: 5 mils: 0.5 to 25.0 cm / 0.2 to 9.8 in Code 39: 10 mils: 0.5 to 38.0 cm / 0.2 to 14.9 in Data Matrix: 10 mils: 0.5 to 21.5 cm / 0.2 to 8.5 in EAN/UPCA: 13 mils: 0.5 to 51.0 cm / 0.2 to 20.1in PDF417: 6.7 mils: 0.5 to 21.0 cm / 0.2 to 8.3 in QR Code: 20 mils: 0 to 37.0 cm / 0 to 14.6 in |
| Scanning range/ Width of Field | Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 65° |
| Resolution | 1D Linear: 0.077 mm/3 mils; PDF417: 0.077 mm/3mils; Data Matrix: 0.127mm/5 mils; QR Code: 0.17 mm/ 6.7mils |
| Interfaces | BC2090: USB Type C / USB / RS-232 Multi-Interface |
| Dimensions | 159x 68x 107mm |
| Weight | 206.5 gr (battery included) |
| Ambient light | 0 - 110,000lux |
| Sealing | IP52 |
| Symbologies | 1D / Linear Codes Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D Codes: Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot code. Postal Codes: Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC).Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites. Digimarc Barcodes. |
| Additional features | Operating Temperature 0° to 50° C (32° to 122° F) Storage Temperature -40° to 70 °C (-40° to 158° F) Humidity Operating: 5% to 95% relative humidity, non-condensing. Drop Specifications Scanner withstands repeated drops from 1.5 meters (5.0 feet) to concrete. |
| File | Size | Download |
|---|---|---|
| QuickScan_2500_Series_EN_2.pdf | 479.47KB | Download |
