Granit 1910 Area Imager Scanner
Granit 1910 Area Imager Scanner
Scanner Honeywell Granit 1910 1D/2D corded

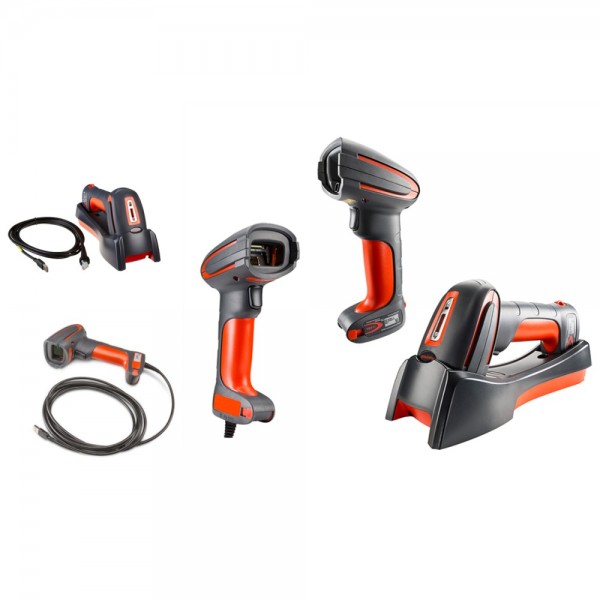

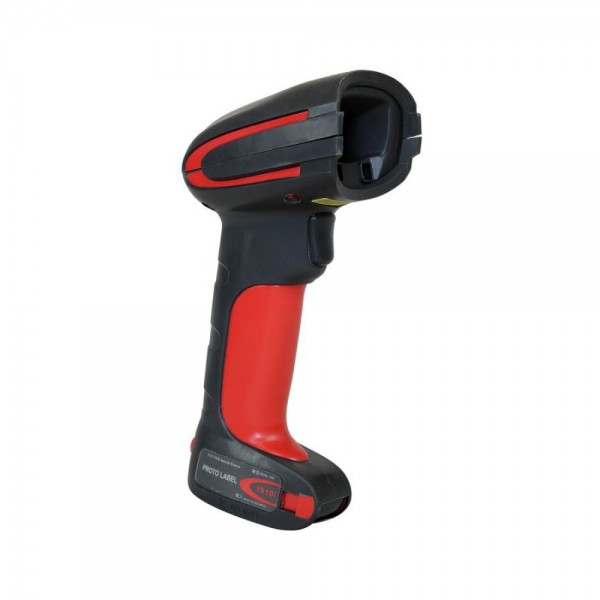

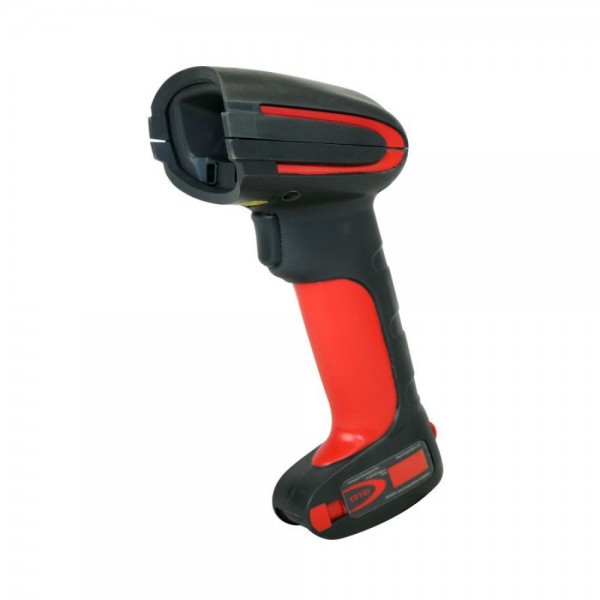

Granit™ 1910i (wired) area-imaging scanners for demanding, arm’:s length scanning of 1D and 2D barcodes. They deliver exceptional performance. Class-leading durability, too, with an IP65 rating to meet the demands of a harsh working environment. Equip your team with confidence. Adaptus 6.0 imaging technology provides aggressive barcode reading and unrivaled accuracy, while the scanner feedback is enhanced for use in extreme industrial environments. The custom-built IP65-rated housing is able to withstand 5,000 1m (3.3 ft) tumbles and survive 50 drops from 2 m (6.5 ft) at -30°:C (-22°:F), reducing service costs and increasing device uptime. Scans out-of-reach items with ease and allows users to scan 20 mil linear codes out to 75 cm (29.5 in) without sacrificing performance on 2D codes.
| Scanners | |
| Reading mode | 1D/2D Area Imager (838 x 640 pixel array) |
| Scanning range/ Βάθος πεδίου | 7.5 mil Code 39: 48 mm – 310 mm (1.9 in – 12.2 in)/ 13 mil UPC: 15 mm – 543 mm (0.6 in – 21.4 in)/ 20 mil Code 39: 15 mm – 749 mm (0.6 in – 29.5 in)/ 6.7 mil PDF417: 69 mm – 226 mm (2.7 in – 8.9 in)/ 10 mil DM: 71 mm – 261 mm (2.8 in – 10.3 in)/ 20 mil QR: 20 mm – 495 mm (0.8 in – 19.5 in). |
| Scanning range/ Width of Field | Scan Angle: ER Focus: Horizontal: 31.6°; Vertical: 24.4°. Pitch, Skew: 45°, 65° |
| Resolution | Resolution 1D Code 39: 5 mil (0.127 mm)/ Resolution 2D DM: 7.5 mil (0.191 mm). |
| Interfaces | USB, Keyboard Wedge, RS-232 TTL |
| Dimensions | 133 mm x 75 mm x 195 mm (5.2 in x 2.9 in x 7.6 in) |
| Weight | 300 g (10.6 oz) |
| Ambient light | 100,000 lux |
| Sealing | IP65 |
| Symbologies | Reads standard 1D, 2D symbologies |
| Additional features | Input Voltage: 4.0V DC to 5.5V DC. Operating Power: 2.35 W (470 mA @ 5V DC). Standby Power: 0.5 W (100 mA @ 5V DC) Operating Temperature: -30°C to 50°C (-22°F to 122°F). Storage Temperature: -40°C to 70°C (-40°F to 158°F). Humidity: 95% relative humidity, non-condensing. Drop: Designed to withstand 50 2m (6.5 ft) drops to concrete. Warranty: 3-year factory warranty |
| File | Size | Download |
|---|---|---|
| granit-1910i-industrial-scanner-data-sheet-en-a4.pdf | 179.51KB | Download |
